VerbisBox
Complete nonstop library solution
Easy operation
Simple operation both for the librarian who prepares the ordered books and also for the reader who orders the book via the web catalog of the library system. The reader only enters a numerical code (PIN) on the VerbisBox keyboard, which he receives in an SMS message or by e-mail.
Still accessible and independent

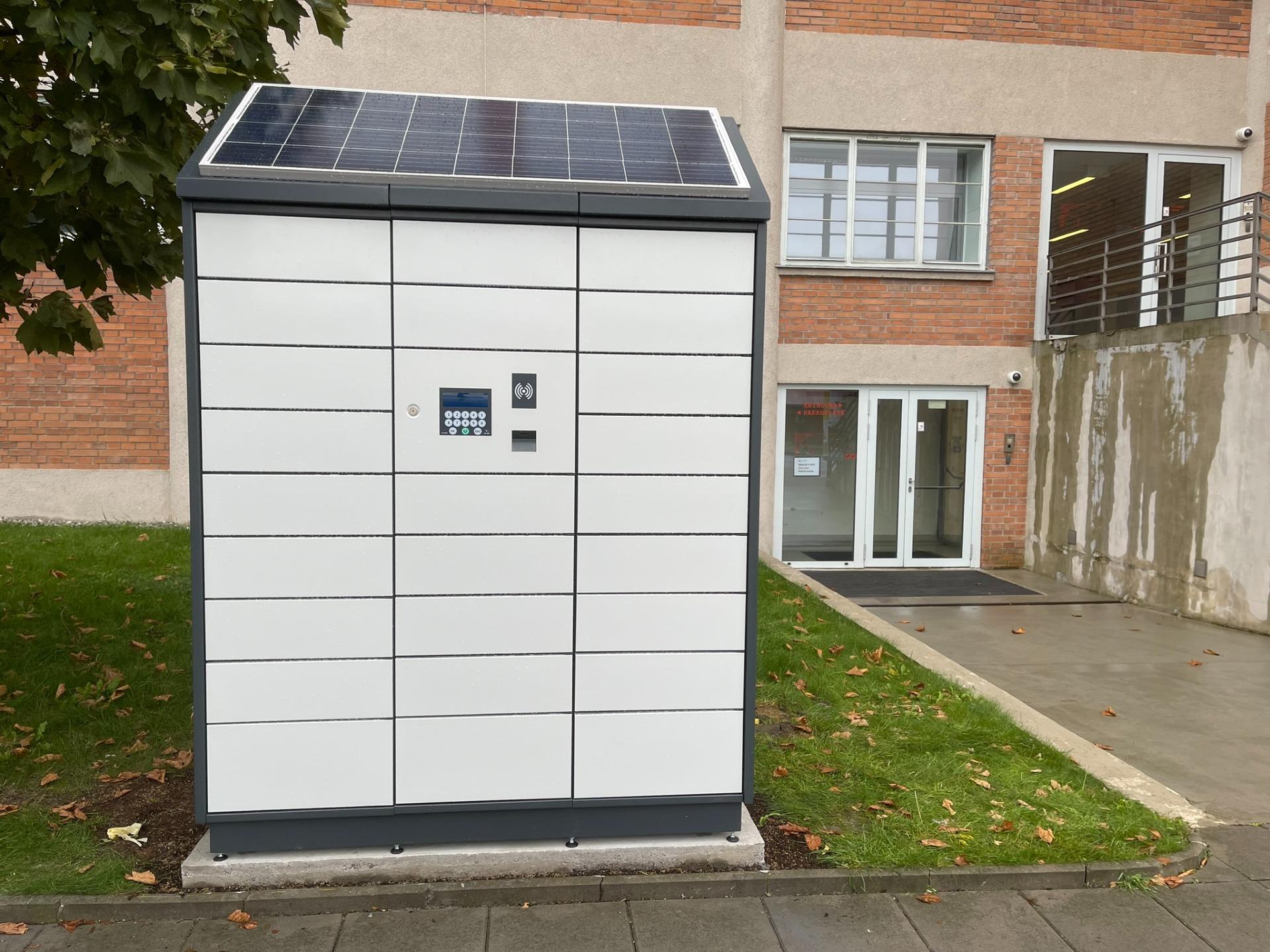

Books are also available to the reader outside the library's opening hours, and the reader can pick them up at any time and completely anonymously. VerbisBox can also be used to return books. VerbisBox can be placed in outdoor spaces without the need for a cable power supply. energy. In that case, the entire device is powered only by the battery, which is continuously recharged by the solar panel. The Internet connection is secured by a mobile data network (e.g. O2).
Connection to any library system
VerbisBox cooperates not only with the Verbis library system, but also with any library system that has the standard SIP2 library communication protocol. The connection is tested, for example, for the Tritius system.
Here you can find VerbisBox
Krajská knihovna Františka Bartoše
Zlín

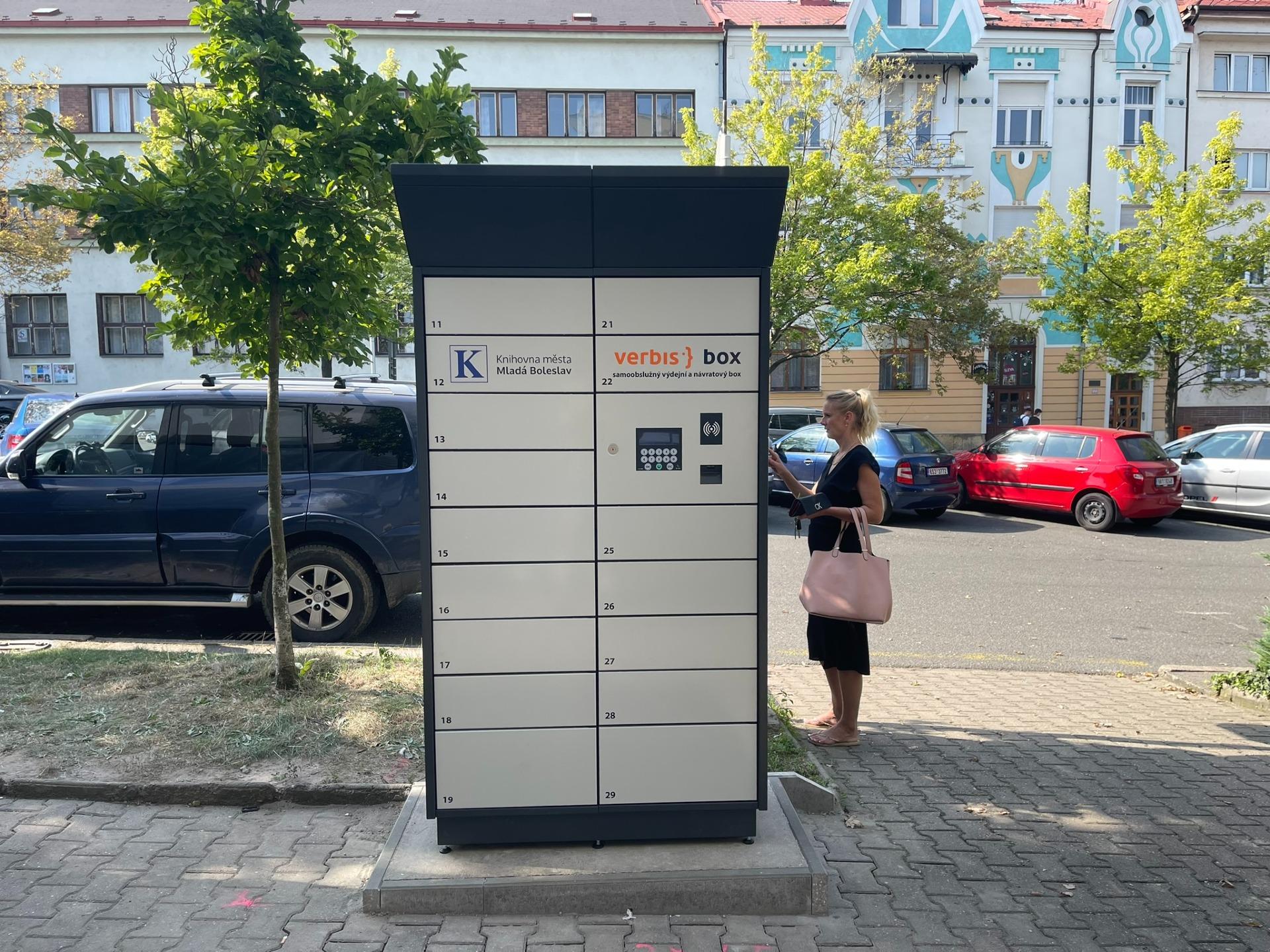

Knihovna města Mladá Boleslav
Mladá Boleslav

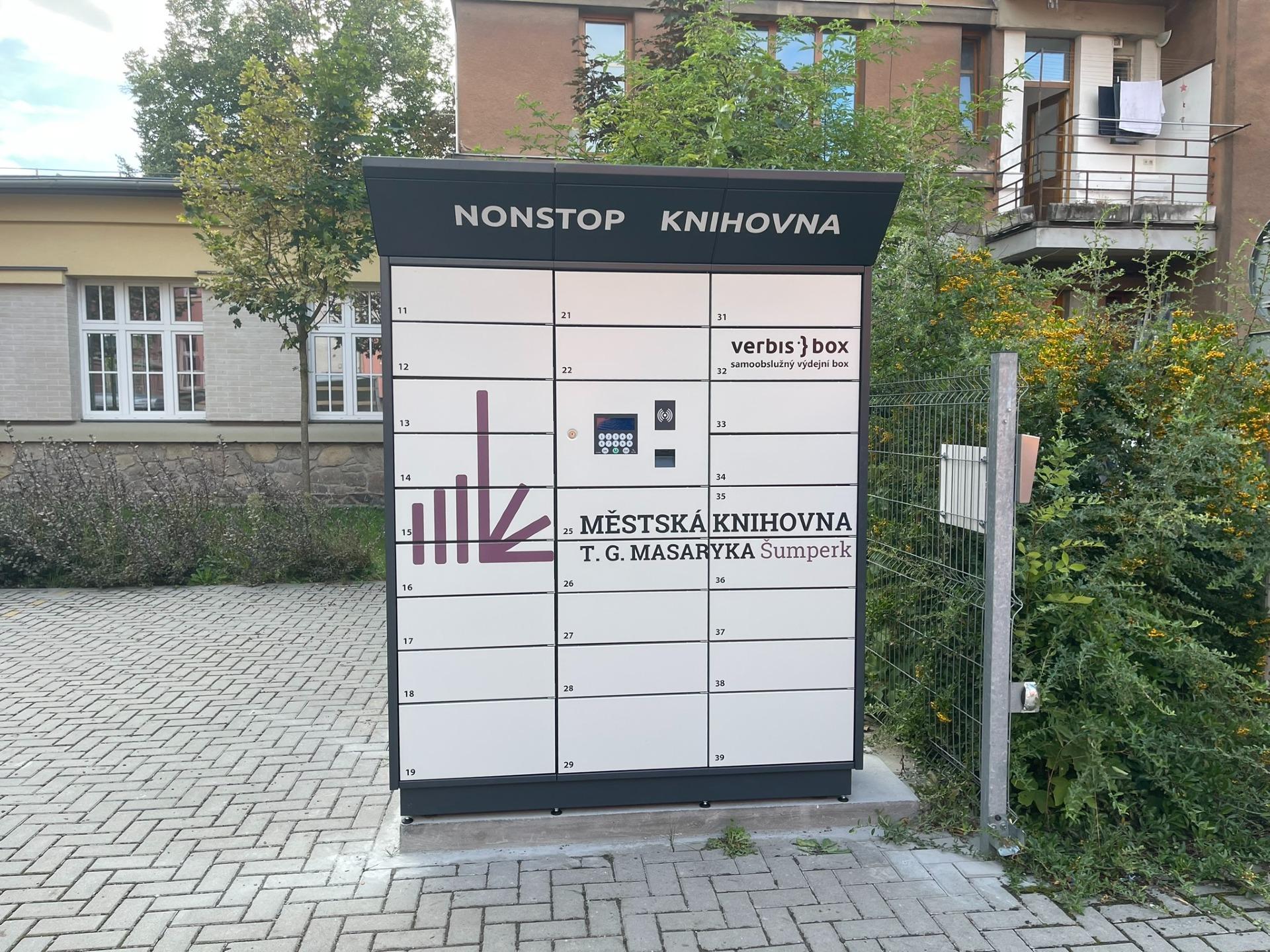

Městská knihovna T. G. Masaryka
Šumperk

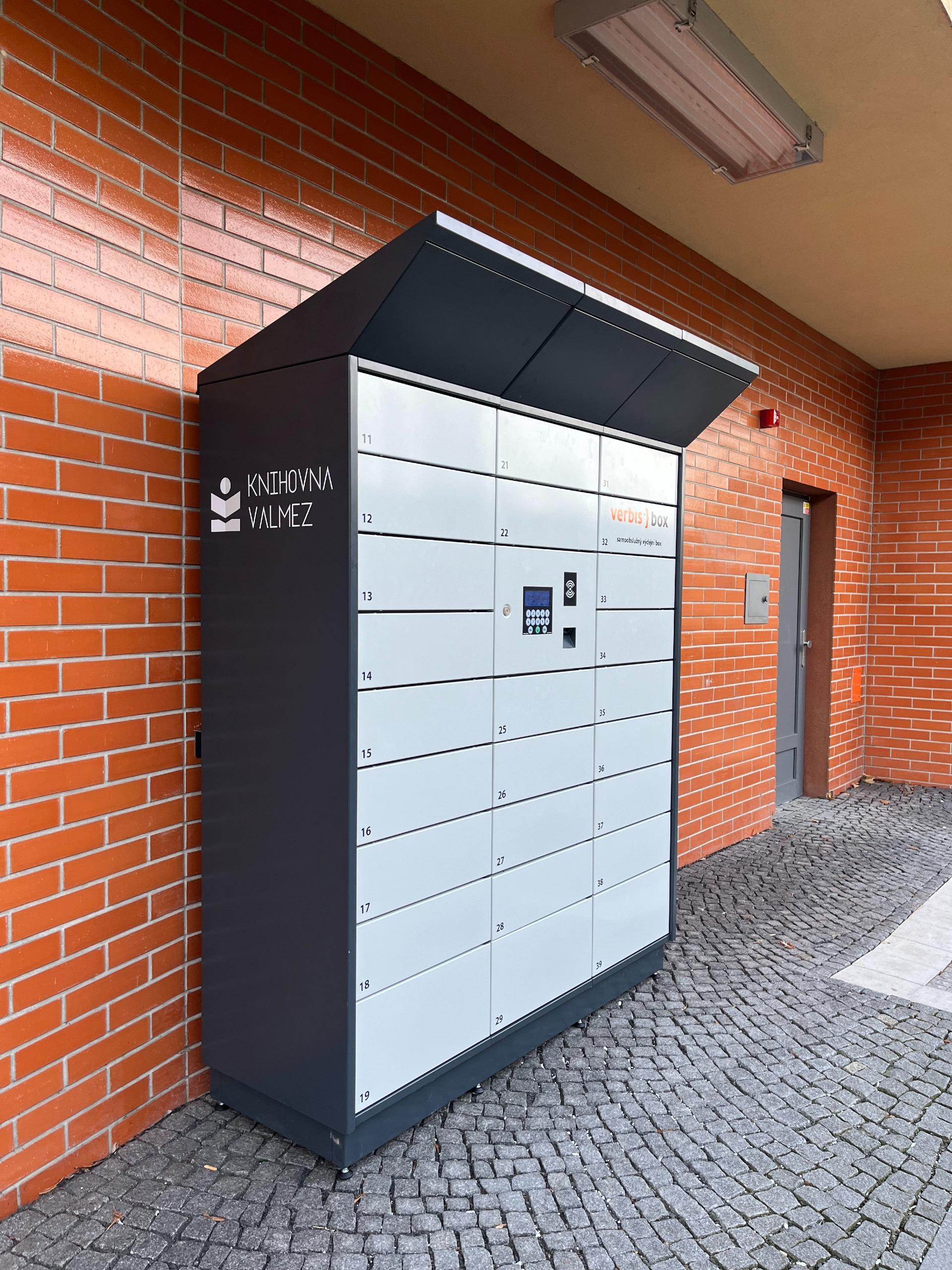

Městská knihovna Valašské Meziříčí
Valašské Meziříčí
Městská knihovna
Orlová

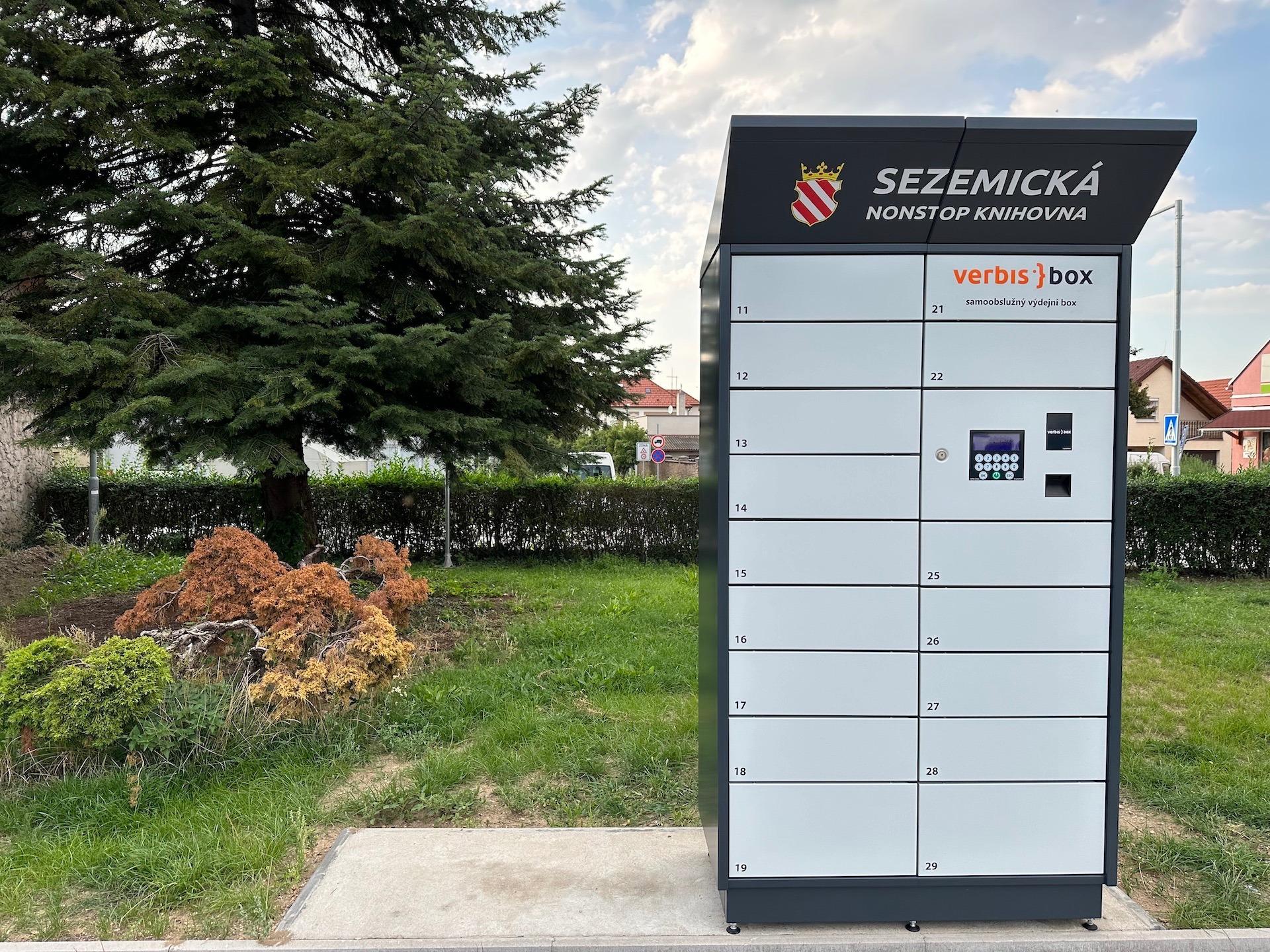

Městská knihovna
Sezemice
Masarykova veřejná knihovna
Vsetín
Knihovna Matěje Josefa Sychry
Ždár nad Sázavou

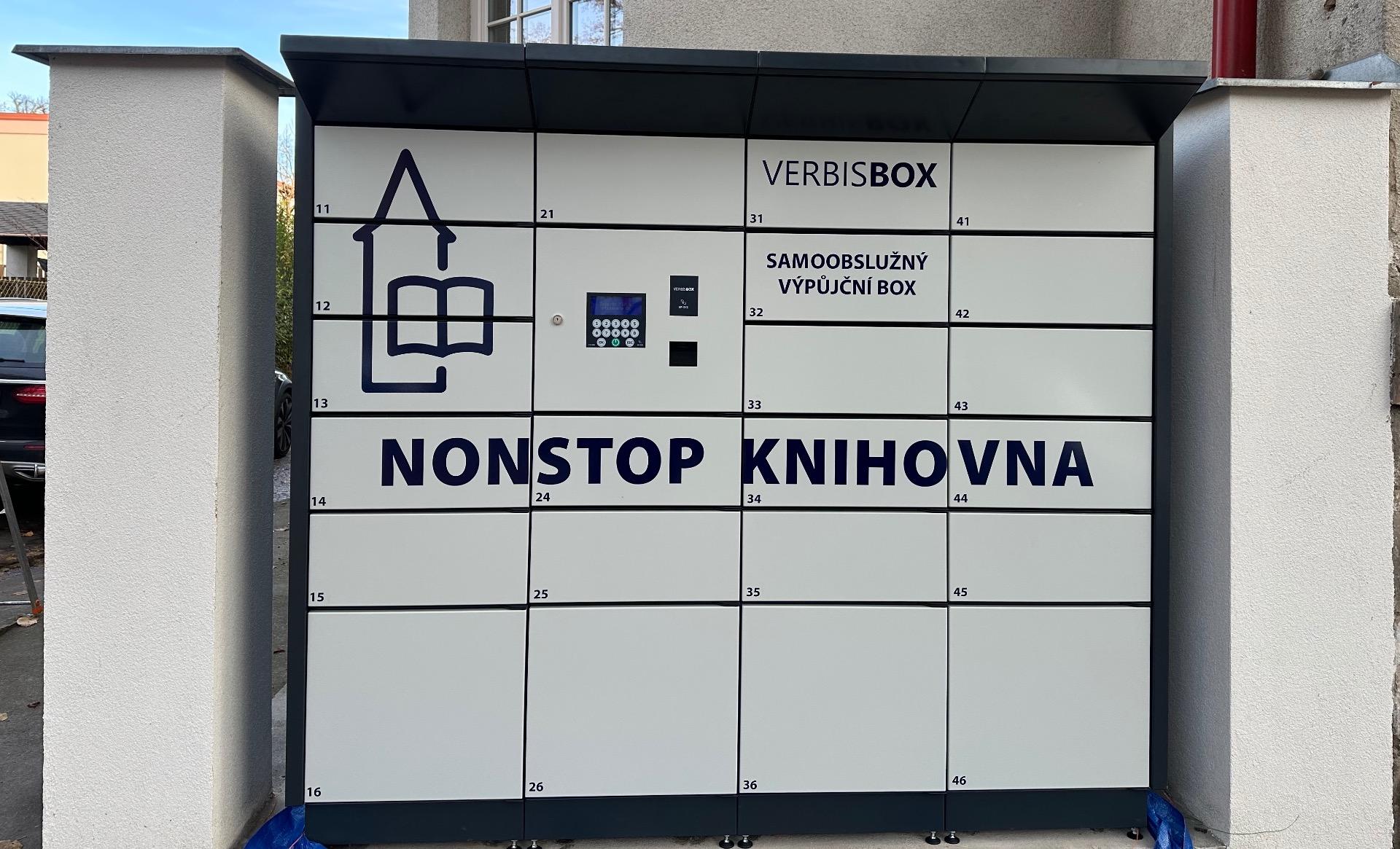

Knihovna Václava Čtvrtka v Jičíně
Jičín
Technical specifications
Electronics communicates with the library system via the Internet.
The reader orders a book through the library's web catalog and chooses the option to pick up the book in VerbisBox.
The librarian will take the prepared books to the box.
Takes book identification (barcode or RFID), VerbisBox opens the appropriate box where the librarian puts the book and closes the box.
One box can contain several books for one reader.
The reader will receive a notification (SMS, e-mail) with a collection code.

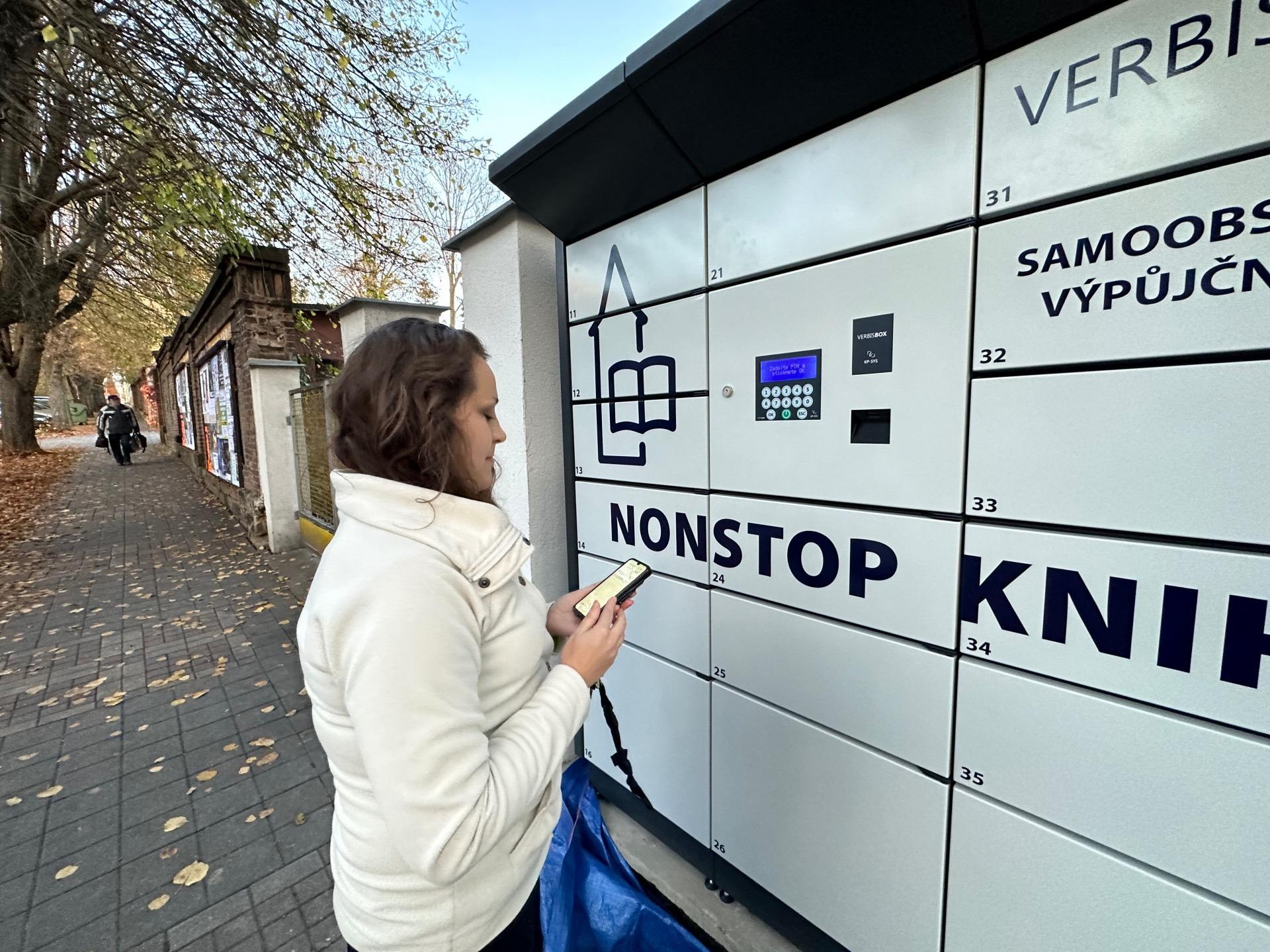

When picking up the order, the reader enters a code on the VerbisBox keyboard and the corresponding box opens.
The loan is made at the moment the box is opened.
The reader is advised to close the box.
Power supply
The power supply is either via a 12V adapter or from a battery that is recharged via a solar panel.
Dimensions
The height of the box is 170 mm or 253 mm. The outer width of the box is 550 mm and the depth is 538 mm. Total height of the entire assembly of one column 2084 mm. Height of box with electronics 347 mm.
Internet connection
VerbisBox is connected to the Internet via a mobile data network (standard via O2).
Assembly and anchoring
VerbisBox is equipped with adjustable feet and is anchored to a solid base (preferably a concrete slab) with chemical anchors. If it is not possible to anchor the VerbisBox to the ground, it is possible to anchor the VerbisBox with anchors to the wall, which is a maximum of 8 cm from the back.
Locks
All boxes have high-quality electromagnetic locks, which can be opened manually using strings from the electronics area if necessary. The box for electronics is equipped with a mechanical lock.
Color
The standard color is a combination of light gray and anthracite. Any painting is included in the price.
Roof

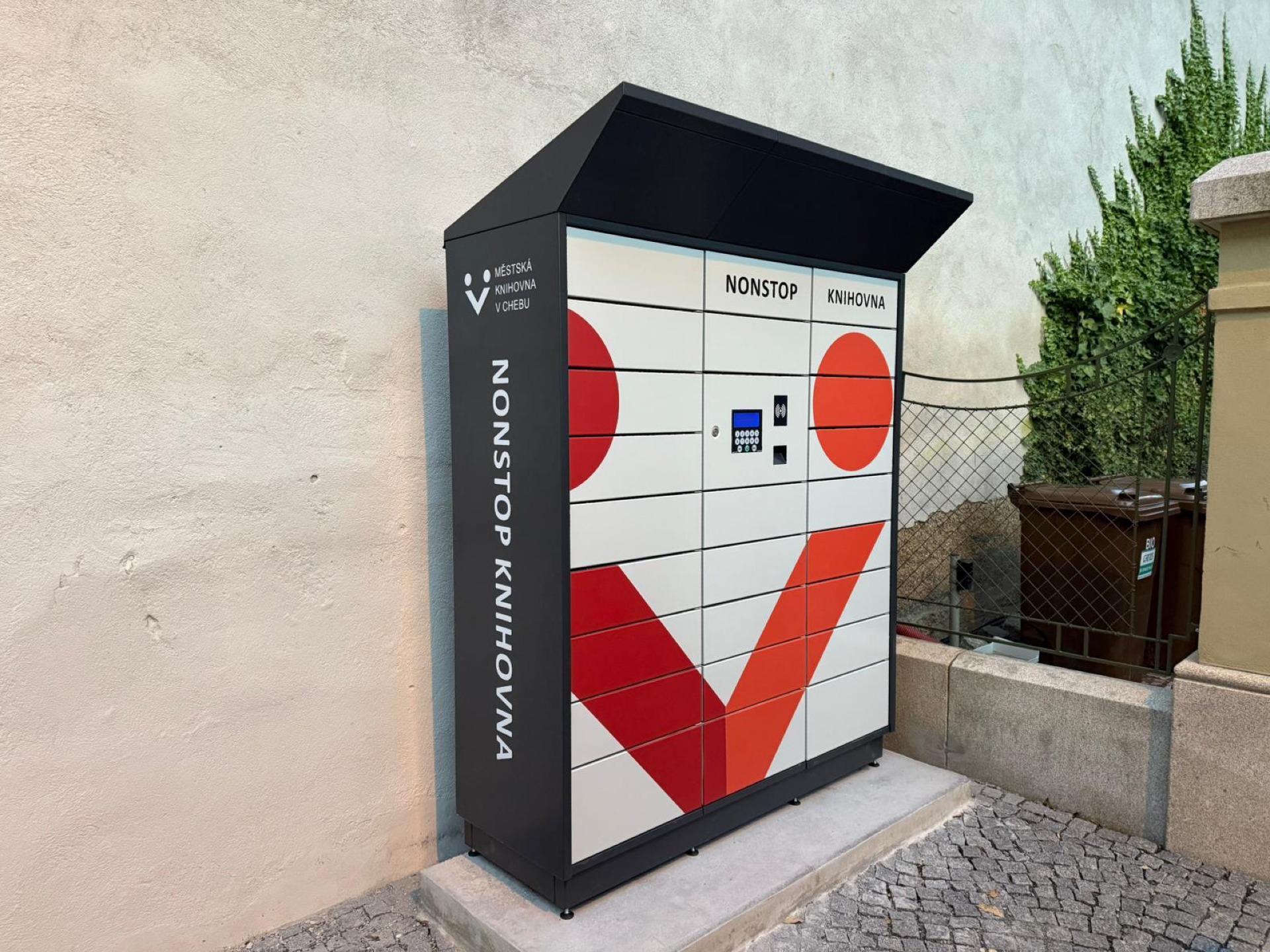

The roof of the assembly is available in two variants. The standard one is folded back. If the VerbisBox is placed against a wall, a canopy with the opposite slope can be installed so that the solar panels have available sunlight.
Internal design of the box
The bottom of the box is smooth with no protrusions and is angled down for easy removal of books. The books are safely protected from the elements.
PRICE
1 rack = 7 boxes + electronics
from 5,000 EUR including installation
2 rack = 16 boxes + electronics
from 7,800 EUR including installation
3 rack = 25 boxes + electronics
from 10,000 EUR including installation
